What is Port-Forwarding?


In computer networking, port forwarding or port mapping is an application of network address translation (NAT) that redirects a communication request from one address and port number combination to another while the packets are traversing a network gateway, such as a router or firewall.


Why port forwarding?


Port forwarding is the process of configuring a router to make a computer or other network device that is connected to it accessible to other computers and network devices from outside of the local network. Port forwarding uses an IP address plus port number to route network requests to specific devices.


Please refer below steps to make Port-Forwarding in Router for Nexxt Solution Router.


This is for eZee FD Online Port Forwarding & For FD Online we are using 3389 Port.


Steps :


First find out ip adress which we are going to use for port forwarding.


We can use any ip address i.e Wireless or Wired.

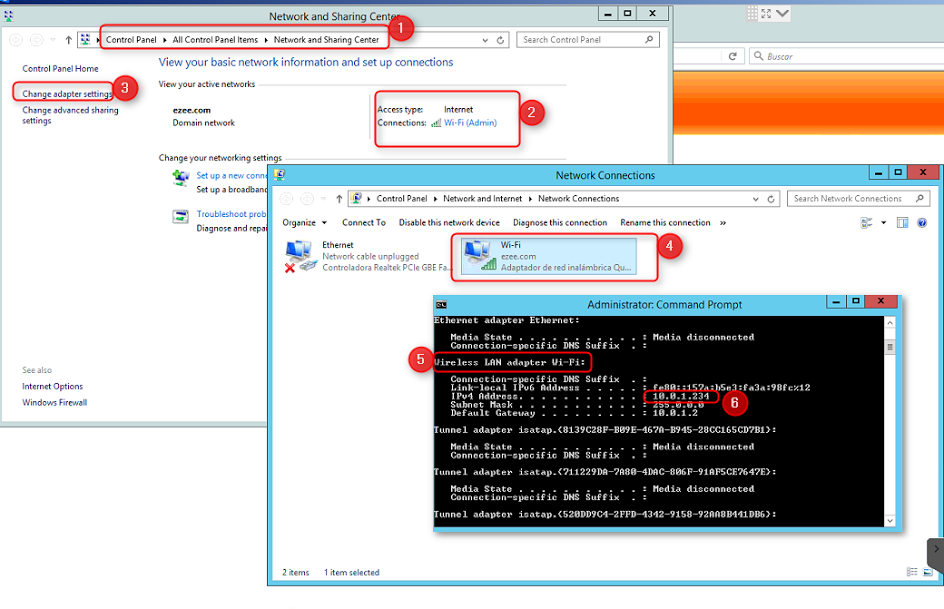

To findout which ip is running in system refer below screenshot where by we have used wireless ip addess connection which will use to make Port-Forwarding.


Note it down.

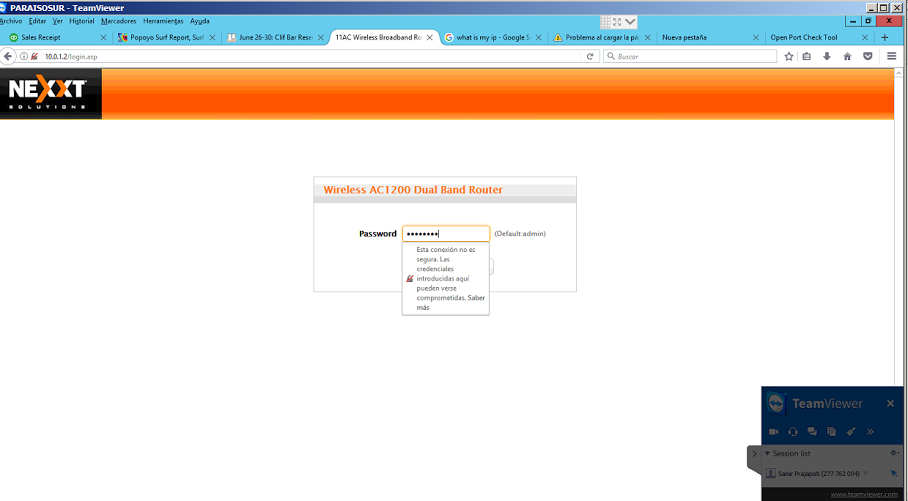

1) Login into Nexxt Solution Router with http://10.0.1.2/login.asp


Ask client to add password as shown in below screenshot

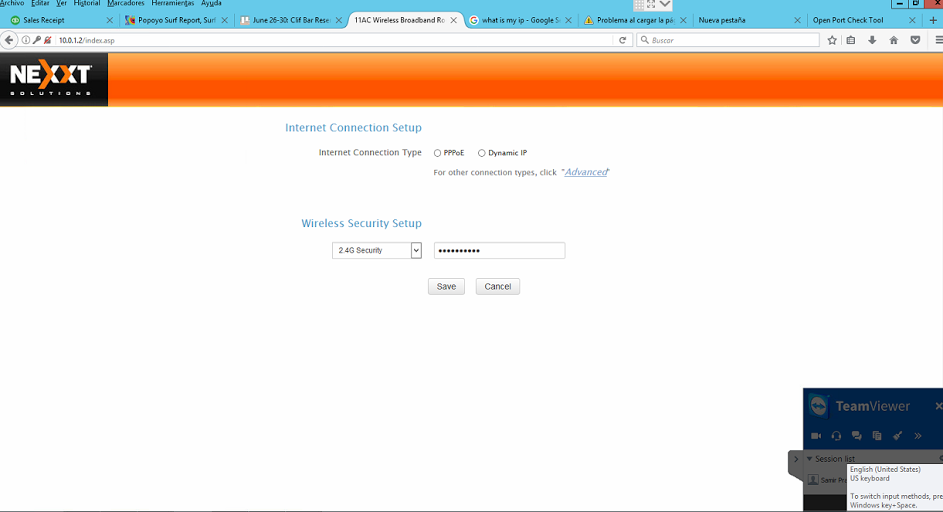

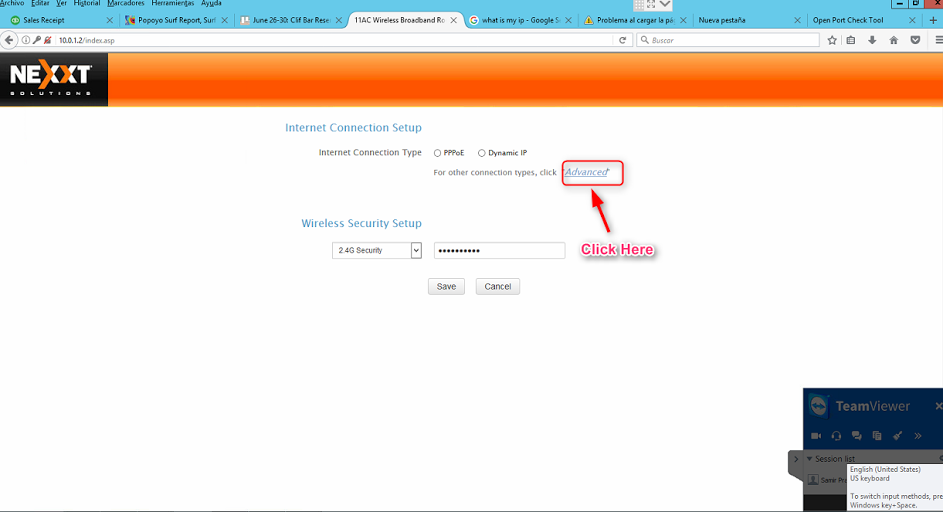

2) Once login is done click on Advanced as show in below screenshot

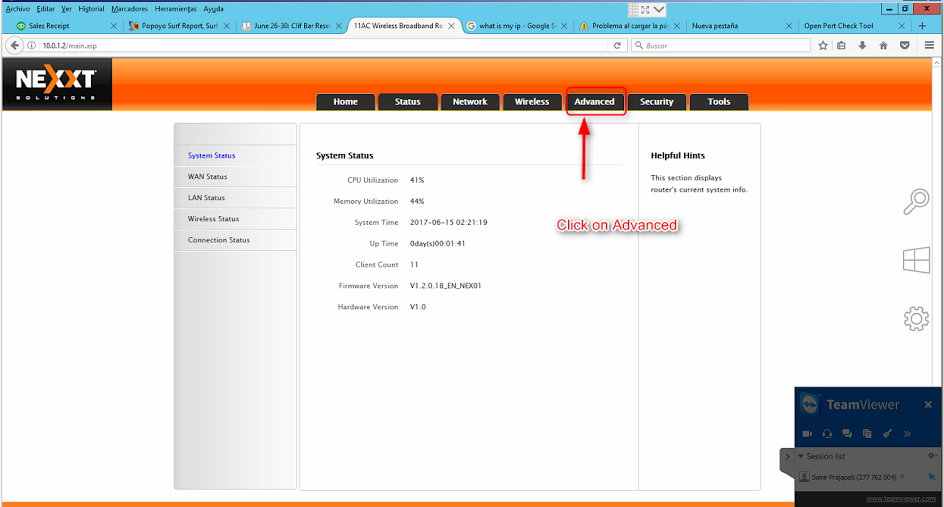

3) Click on Advanced

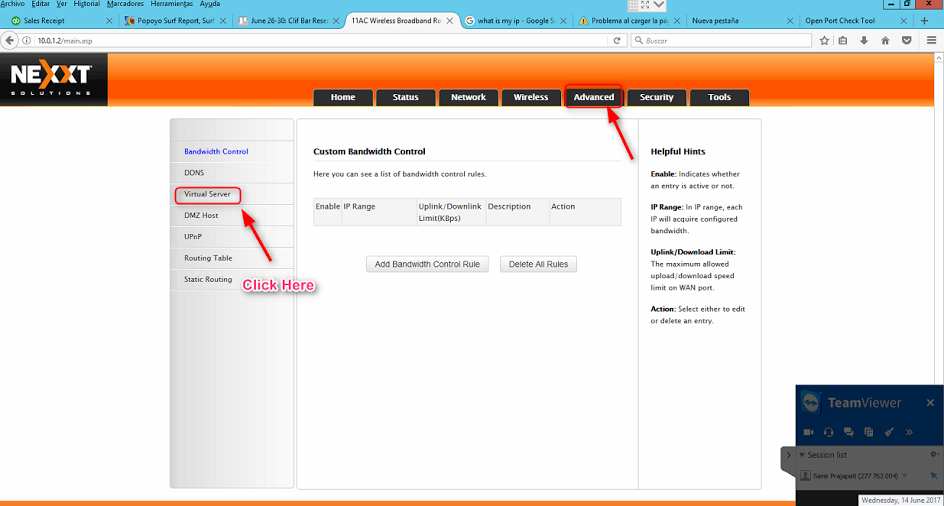

4) Click on Virtual Server

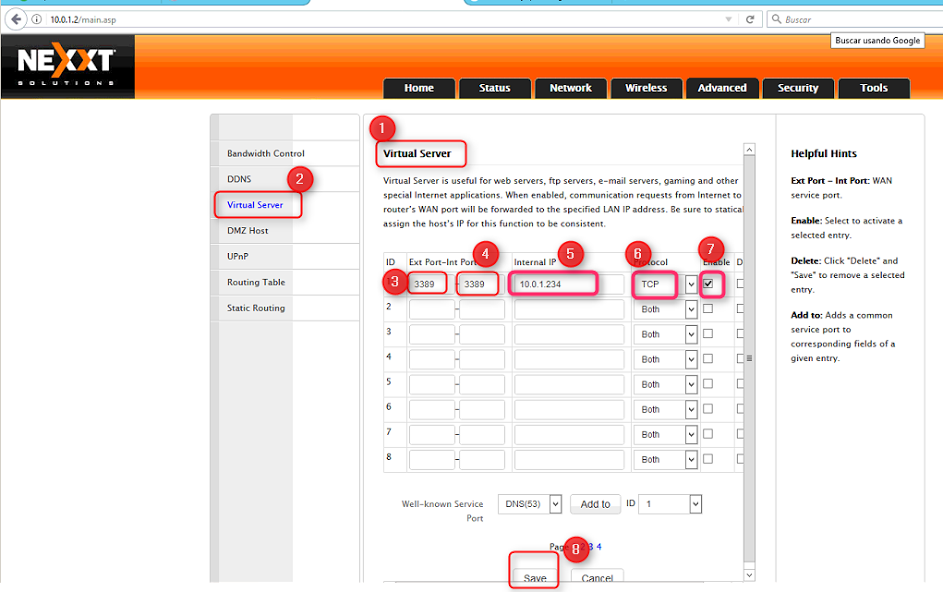

5) Add Port  and ip address with Check Mark Enable

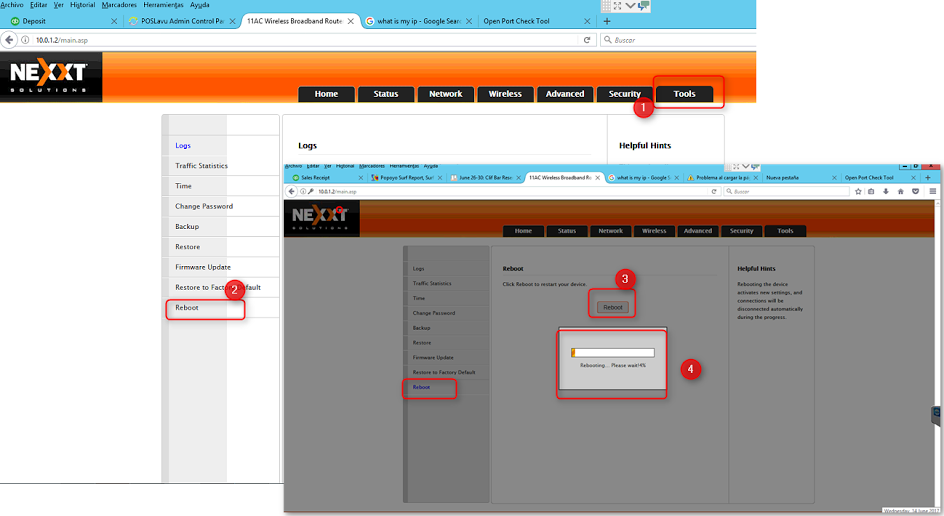

6) Reboot the Router

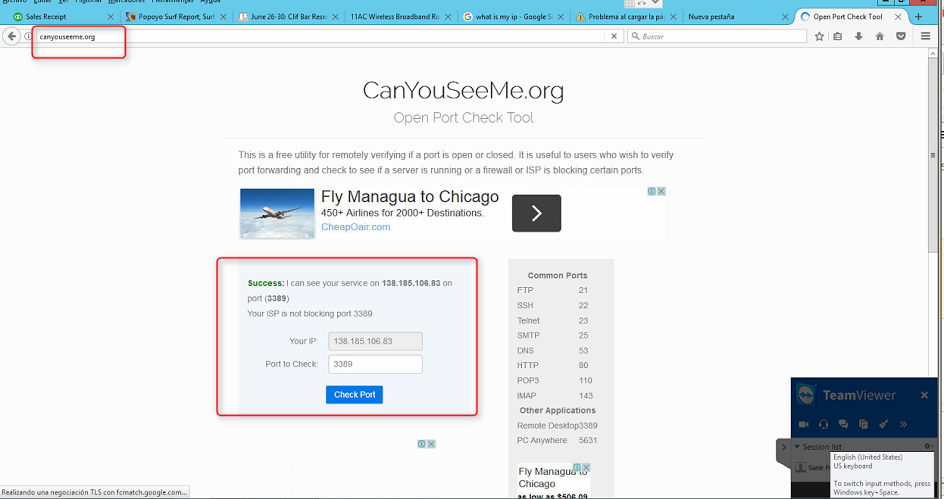

7) Once its reboot varify Port is open or not?


Open website : www.canyouseeme.org


Ip addess: It will comes automatically from Service Provider which is Public IP


Port to check : 3389


Click on Check port.


If its coming succcess, Means Port-Forwarding is Done.


If its showing error , Means Port-Forwarding is not Done.
